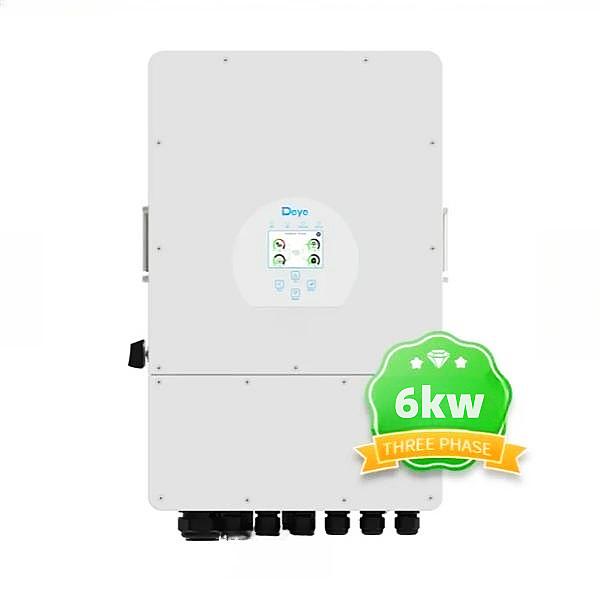

Deye Sun 6K Low Voltage Hybrid Inverter Wall Mounted IP65

Ask Lasest Price
Brand Name :	Deye
Model Number :	SUN-6K-SG04LP3-EU
Certification :	CE ISO TUV
Price :	US$+1828-2028+piece
Payment Terms :	T/T
Supply Ability :	10000 pieces month
Delivery Time :	10-15workday

Add to Cart

Product Details
Company Profile

Deye Sun 6K Low Voltage Hybrid Inverter Wall Mounted IP65

Factory Direct Supply SUN-6K-SG04LP3-EU Deye Hybrid Inverter Solar Hybrid Inverter

Model	SUN-5K- SG04LP3-EU	SUN-6K- SG04LP3-EU	SUN-8K- SG04LP3-EU	SUN-10K- SG04LP3-EU	SUN-12K- SG04LP3-EU
Bamery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	120A	150A	190A	210A	240A
Max. Discharging Current (A)	120A	150A	190A	210A	240A
Charging Curve	3 Stages /Equalization
Extemal Temperature Sensor	Yes
Charging Strategy for Li-lon Battery	Seli-adaption to BMS
PVStringInput Data
Max. DC Input Power (W)	6500W	7800W	10400W	13000W	15600W
Rated PV Input Voltage (V)	550V(160V～800V)
Start-up Voltage (V)	160V
MPPT Range (V)	200V-650V
Full Load DC Voltage Range (V)	350V-650V
PV Input Current (A)	13A+13A			26A+13A
Max. PV ISC (A)	17A+17A			34A+17A
Number of MPPT/ Strings per MPPT	2/1			2/2+1
AC Output Data
Rated AC Output and UPS Power (W)	5000W	6000W	8000W	10000W	12000W
Max.AC Output Power (W)	5500W	6600W	8800W	11000W	13200W
Peak Power (off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	7.6/7.2	9.1/8.7	12.1/11.6	15.2/14.5	18.2/17.4
Max. AC Current (A)	11.4/10.9	13.6/13	18.2/17.4	22.7/21.7	27.3/26.1
Max. Continuous AC Passthrough (A)	45A
Output Frequency and Voltage	50/60Hz;3L/N/PE 220/380Vac,230/400Vac
Grid Type	Three Phase
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
py string Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Surge protection	DC TypeⅡI/AC Type Ⅲ
Certifications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105 , NRS 097 ,IEC 621 16, IEC 61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11
Safety EMC/ Standard	IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
General Data
Operating Temperature Range (°C	-45~60°C,>45°℃ Derating
Cooling	Smart cooling
Noise (dB)	<45 dB
Communication with BMS	RS485; CAN
Weight (kg)	33.6
Size (mm)	422W×699.3H×279D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

Deye Sun 6K Low Voltage Hybrid Inverter Wall Mounted IP65
