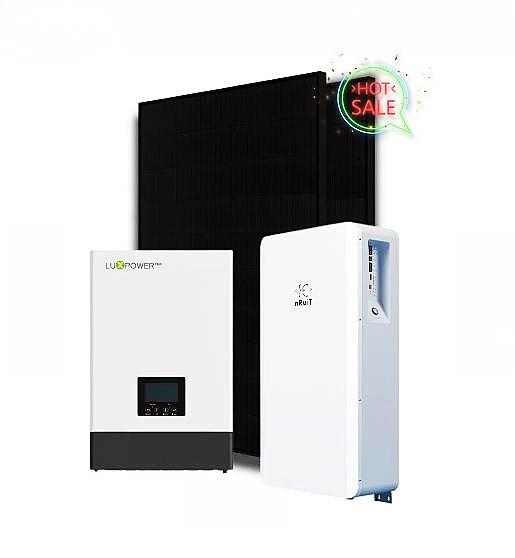

Name: Luxpower Hybrid Inverter 6Kw Low Voltage Hybrid Inverter 7KW 8KW
Brand: LUXPOWER
Price: 2678 USD

Add to Cart

LUXPOWER LXP Hybrid 3-6k hybrid solar power system Solar Hybrid Inverter

Product Paramenters
Model No.	LXP3K	LXP3.6K/4k	LXP4.6K/5K	LXP6K
Input Data(DC)
Max. DC Power	6.6 kW	7 kW	8 kW	8 kW
Nominal DC Voltage	360V	360V	360V	360V
Min. DC Voltage to Start Feed In	120V	120V	120V	120V
Max. DC Current	26A	26A	26A	26 A
MPP(T) Voltage Range	100~500V	100~500V	100~500V	100~500V
No of MPP Trackers	2	2	2	2
Output Data(AC)
Nominal AC Power	3 kW	4 kW	5 kW	6 kW
Output AC Voltage Range	180~270V	180~270V	180~270V	180~270V
Nominal AC Voltage	230V	230V	230V	230V
Max. AC Current	15A	20A	25A	26A
Frequency Range	45-65 Hz	45-65 Hz	45-65 Hz	45-65 Hz
Frequency	50,60 Hz	50,60 Hz	50,60 Hz	50,60 Hz
Power Factor (cosθ)	0.8	0.8	0.8	0.8
Distortion (THD)	<3%	<3%	<3%	<3%
Max. Efficiency	97.90%	97.90%	97.90%	97.90%
Euro Efficiency	97.50%	97.50%	97.50%	97.50%
General Data
Dimensions (H/W/D)	476x455x181 mm	476x455x181 mm	476x455x181 mm	476x455x181 mm
Weight	20 kg	20 kg	20 kg	20 kg
Noise Level	<25 dB(A )	<25 dB(A)	<25 dB(A)	<25 dB(A )
Operating Temperature	-25～+60 ℃
Transformer	Transform erless
Protection Class	IP65, NEMA 4X
Humidity	0-100%
Cooling	Natural
Max. Altitude	2000 m
Interface	RS 485 WLAN
Display	LCD
Protection Features
Protection Features	Anti Island Protection (ENS), Short Circuit Protection Overvolta ge Protection Oyercurre nt Protection Reverse Polarity Protection ,Ground Fault Monitorin g, Grid Monitorin g
